Sensor package

 RGB and thermal sensors for early detection capabilities

 Easy to install and setup

 Cost-efficient and scalable

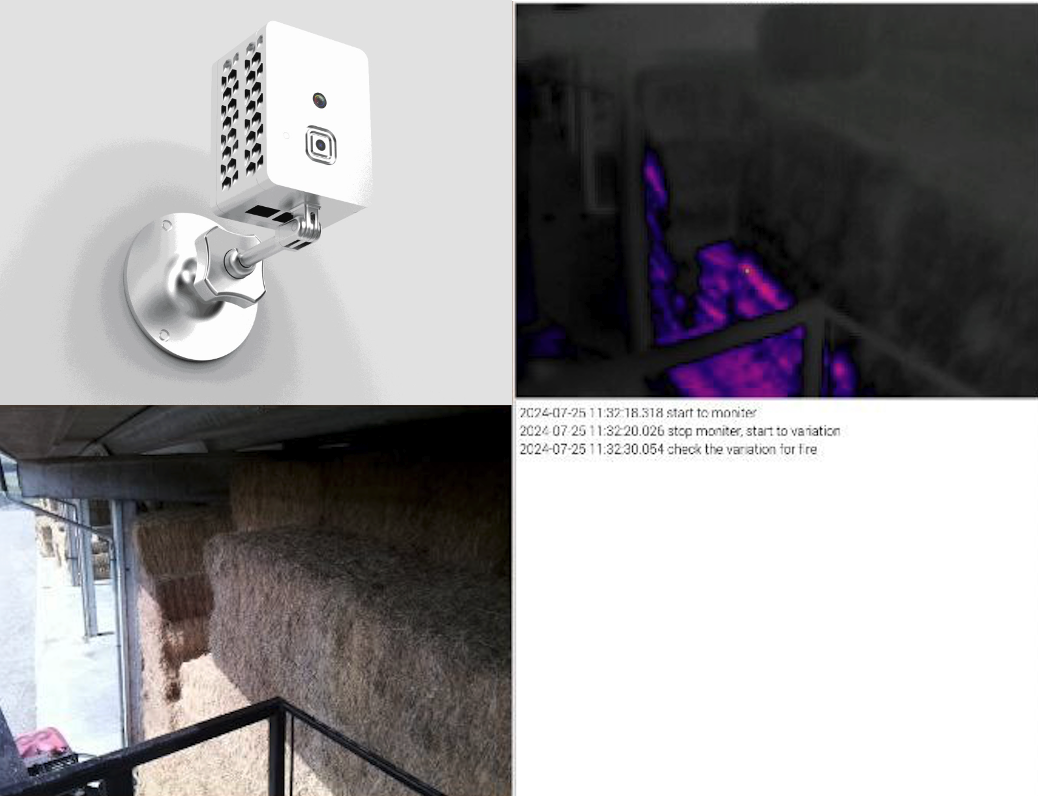

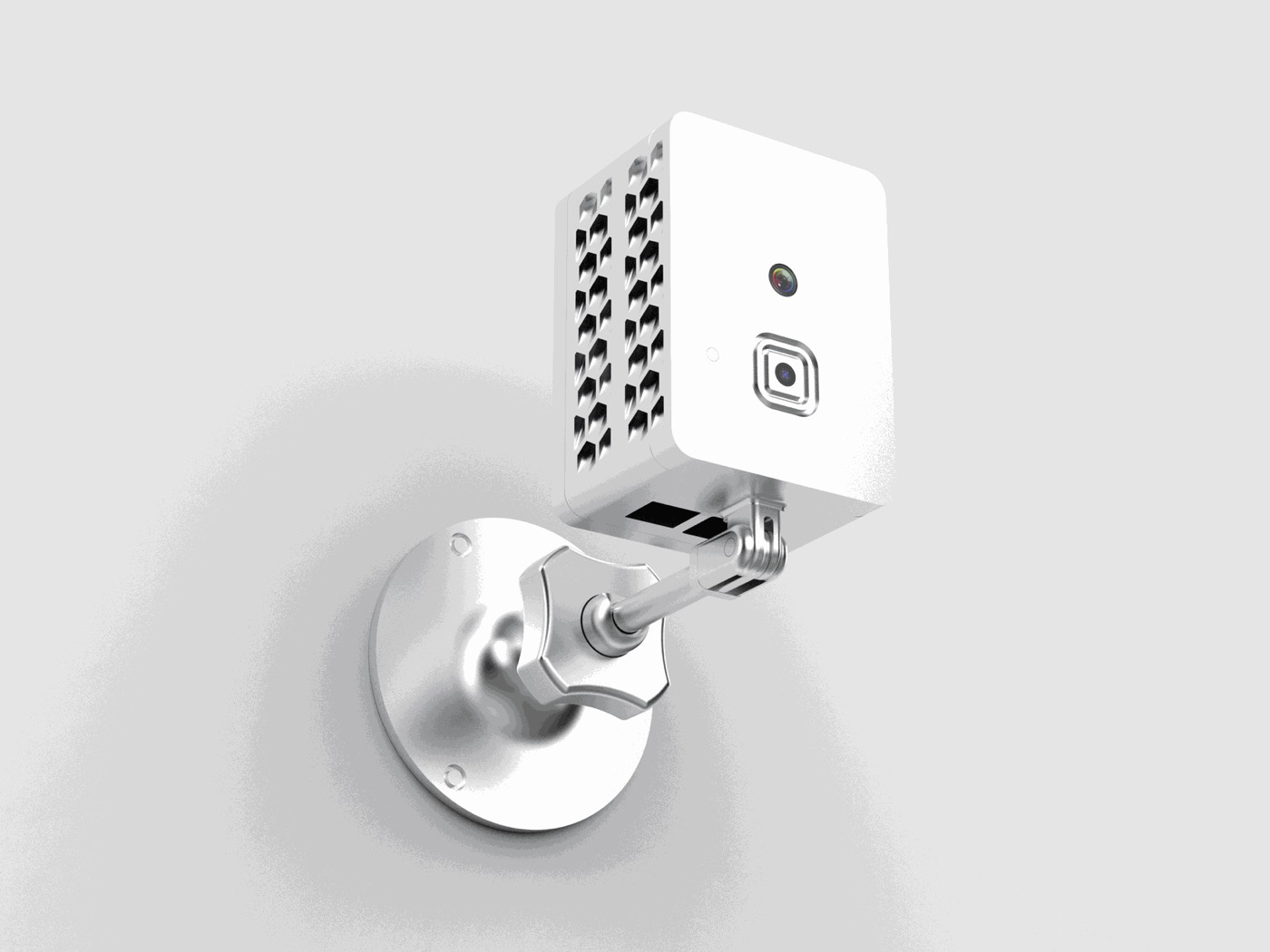

  • Thermal and RGB electro-optical sensor combination
  • Detection capability of fire the size of 0.04 m2 at distances larger than 60 meters
  • FOV – horizontal 57°
  • FOV - vertical 44°
  • 160 x 120 active IR pixels
  • 4K RGB video feed
  • Spectral range of longwave infrared, 8 μm to 14 μm
  • Thermal sensitivity of <50 mK (0.05°C)
  • Thermal dynamic range -10° to +400°C (at room temperature)
  • Package size of 105x75x60 mm
  • Suitable for all types of fire
  • Robust operating temperature up to 85°C continuous, and 100°C for minutes
